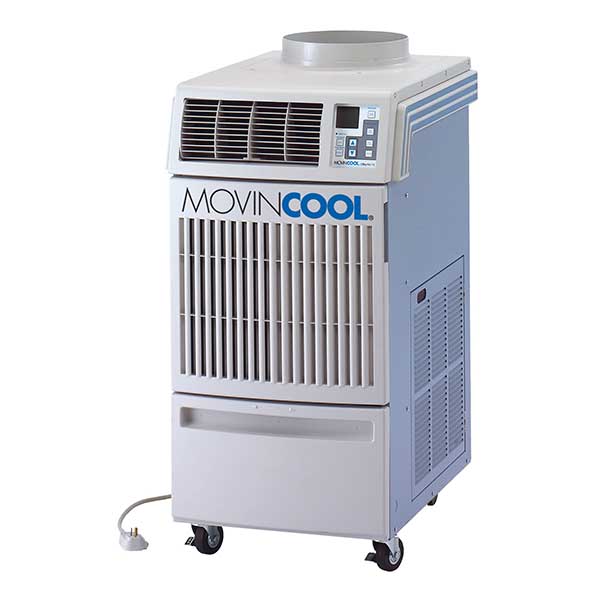

Climate Pro 18

$5,995.00

  • Highest-performance unit in its class by actual measured output
  • High cooling capacity of 14,600 Btu/h (16,800 Btu/h ASHRAE Standard 128-2001)
  • High heating capacity of 13,700 Btu/h
  • Large, easy-to-read LCD display provides on-screen diagnostics, with step-by-step instructions to start, set up or restore operation.
Categories: , SKU: PAG-CLP18-080817-01

Description

Versatile and Instantly Ready.

The MovinCool Classic Plus 14 portable AC has all the benefits of our proven Classic Series, PLUS new features designed to increase performance and control. The Classic Plus is the most versatile of our portable AC units. It is instantly ready to provide cool air in the hottest environments such as production lines, outdoor events, manufacturing processes, injection molding, metal forming and much more.

The Classic Plus features a programmable, programmable temperature controller allowing the user to “set” the desired temperature. At 13,200 Btu/hr of cooling, the Classic Plus 14 provides the maximum capacity possible operating on standard 115V, 15amps power. By cooling only the area that needs it, the Classic Plus 14 portable A/C saves you money while protecting people and equipment and speeding up processes. Self-contained and portable, the Classic Plus 14 requires little or no installation – simply roll it in, plug it in and turn it on.

** Exhaust duct required in most cases.

Related Products

Accessories

KCA3021

$5,995.00
  • 29,500 BTU/H – 2.5-ton capacity air cooled
  • Compact yet Powerful
  • Runs on 230V 20 amp circuit
  • High Sensible Cooling – Ideal for Server Room Applications
  • All Direct Drive Blowers for Maintenance Free Use
  • THD Technology – Twin Direct Hyper Drives (Some Models)
  • High Static Cold Air Blower for up to 4 ducts for Cold Air Distribution to Hot Spots
  • Works with Almost All Thermostats
  • Signal Output Connects to Building Control System
  • Works with fire alarm Control for Safety Shut Off
  • Internal High Pressure 20-ft. Lift Condensate Pump with Overflow Cutoff
  • Automatic Low Pressure Switch
Size: 26 × 24 × 20 in
Weight: 256lbs

Additional information

Weight 214 lbs
Dimensions 21 × 27 × 49 in

Downloads

Specification Sheet
Electronic Features Control Programmable
Cooling Capacity Rating Conditions: Cooling Indoor @ 80°F @ 50% RH Heating: Indoor @ 70°F/ Outdoor @ 47°F @ 50% RH Cooling: 10,200 Btu/h Heating: 9,900 Btu/h
Electrical Characteristics Voltage Requirement 1 Phase, 115V
  Total Power Consumption Cooling:1.54 kW Heating:1.61 kW
  Current Consumption Cooling: 14.1 amps Heating 14.7 amps
  Recommended Fuse Size 20 amps
  NEMA Plug Configuration 5-20P
  Min. Max. Voltage 105-125
Fans Motor Output- high/mid/low Supply: 0.12/0.045/0.017kW Exhaust 0.135 KW
Indoor Heat Exchanger (Supply) Fan Type Centrifugal
  Max Air Flow high/mid/low 540/440/350 CFM
  Max External Static Pressure 0.31 IWG
Outdoor Heat Exchanger (Exhaust) Fan Type Centrifugal
  Max Air Flow 700 CFM
  Max External Static Pressure 0.23 IWG
Compressor Type Hermetic Rotary
  Output 1.16 kW
Refrigerant Type R-410A
Dimensions W x D x H 21 x 27 x 49 in
Net Weight/Shipping Weight   214/257 lb
Power Cord Gauge 12 AWG (3 – core)
  Length 10 ft
Condensate Tank Capacity   5 gal
Operating Conditions Min. Max. (@ 50% RH) Cooling – 65° – 95°F Heating: Without Plenum: 40°F – 80°F (Air entering indoor and outdoor heat exchangers) With Plenum: 40°F – 80°F (Air entering indoor heat exchanger) 24°F- 80°F (Air entering outdoor heat exchanger)
Max. Duct Length Supply Duct Hose 25ft
  Exhaust Duct Hose 100 ft
Max. Sound Level With Exhaust Duct- high/low 61/59 dB(A)
  Without Exhaust Duct-high/low 62/60 dB(A)
