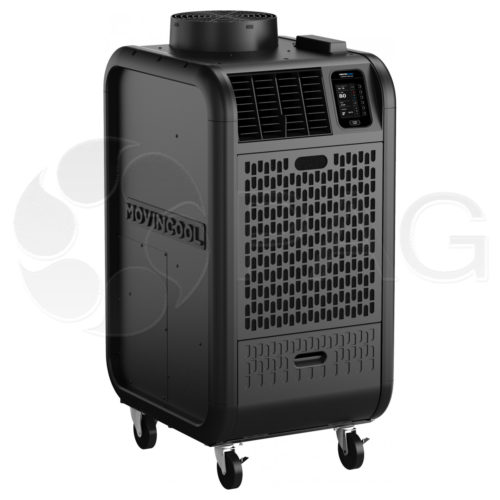

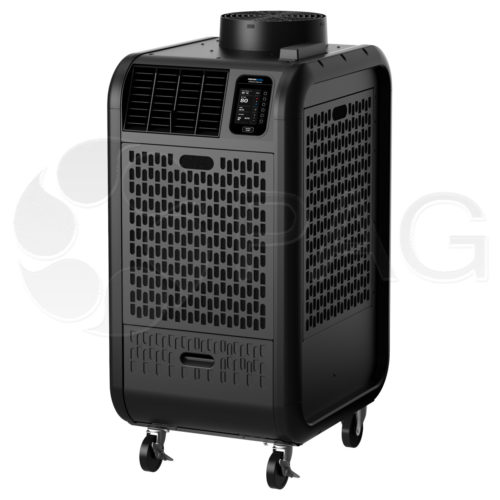

MovinCool Climate Pro D12 – Heat Pump 11,450 BTU/h cooling | 9,900 BTU/h heating

$6,299.00 $4,999.00

Year-round utility with heating and cooling from a single unit

The Climate Pro D12 heat pump is an all-in-one system for temperature control in any season. It delivers 11,450 Btu/h of cooling and 9,900 Btu/h of heating ? with a space-saving footprint of just over 4 sq. ft.

  • Minimal electricity. Runs on 115V with 15 amp circuit and consumes just 1.38 kW (cooling) or 1.25 kW (heating).
  • Effective cooling in conditions from 65? to 95?F.
  • Provides heating in conditions from 24? to 80?F (with plenum and air entering outdoor heat exchanger).
  • Programmable electronics for automatic operation after hours and on weekends.
  • Wireless connectivity-ready for remote monitoring and e-notifications of performance.

Specification Sheet Operation Manual

Categories: , SKU: PAG-d12-020620-01
Brands:

Description

Accessories Diagram

Accessories are not included with the unit.

#

Part Num

Item

Description

1 481170-0450 Supply Air Flange Kit, 5-in dia. 5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
2 484209-0480 Nozzle Kit, 5-in dia. 5-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring.
4 481744-0091 Self-Supported Duct, 5-in dia. 5-in diameter, white plastic duct that extends from 6.5 to 10 feet in length.
5 481851-0200 Trim Ring, 5-in dia. 5-in diameter black plastic ring mounts as end caps for extension duct.
6 481170-0480 Supply Air Flange Kit, 5-in dia., Quick Connect type 5-in diameter white metal flange with wire clamp and mounting screws. Quick Connect Type. Use with supply air ducts.
6A 481769-0280 Nozzle Adapter Kit, 5-in dia. Adapter converts airflow from louvers to nozzles or air ducts.
8 LAY45771-0060 Flexible Air Duct, 12-in dia. (not shown) 12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp.
9 LA146373-8280 Celling Tile Kit, 12-in hole, plastic 24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct.
9 484490-1030 Celling Tile Kit, 12-in hole, metal 24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit
10 484350-1340 Outdoor Air Plenum Plenum for return air to the outdoor heat exchanger.
11 484789-0210 Condensate Pump Kit, 110V 115V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 20 feet at 115V

Specifications

Electronic Features

Control Panel Programmable

Cooling Capacity

Rating Conditions:
Cooling: Indoor @ 80?F / Outdoor @ 80?F @ 50% RH
Cooling: 11,450 Btu/h
Heating: Indoor @ 70?F / Outdoor @ 47?F @ 50% RH Heating: 9,900 Btu/h

Electrical Characteristics

Voltage Requirement 1 Phase, 115 V, 60 Hz
Total Power Consumption Cooling: 1.38 kW, Heating: 1.25 kW
Current Consumption Cooling: 12.1 amps, Heating: 13.3 amps
Recommended Fuse Size 15 amps
NEMA Plug Configuration 5-15P
Min. – Max. Voltage 104 – 127 V

Fans

Air Volume – High/Mid/Low 420/340/280 CFM
Outdoor Fan 760 CFM

Indoor Heat Exchanger (Supply)

Fan Type Centrifugal
Max. Air Flow – High/Mid/Low 420/340/280 CFM
Max. External Static Pressure 0.31 IWG

Outdoor Heat Exchanger (Exhaust)

Fan Type Centrifugal
Max. Air Flow 760 CFM
Max. External Static Pressure 0.19 IWG

Compressor

Type Hermetic Rotary
Output 0.75 kW

Refrigerant

Type R-410A

Dimensions

W x D x H 22 x 27 x 47 in

Weight

Net / Shipping 181 / 218 lb

Power Cord

Gauge 14 AWG (3-core)
Length 10 ft

Condensate Tank

Capacity 5 gal

Operating Conditions

Min. – Max. @ 50% RH Cooling: 65? – 95?F
Heating:
Without Plenum: 40?F – 80?F (Air entering indoor and outdoor heat exchangers)
With Plenum: 40?F – 80?F (Air entering indoor heat exchanger) 24?F – 80?F (Air entering outdoor heat exchanger)

Max. Duct Length

Supply Duct Hose 30 ft
Exhaust Duct Hose 100 ft

Max. Sound Level

With Condenser Duct – High/Mid/Low 61/60/59 dB(A)
Without Condenser Duct – High/Mid/Low 62/61/60 dB(A)

Additional information

Weight 181 lbs
Dimensions 22 × 27 × 47 in
