Description

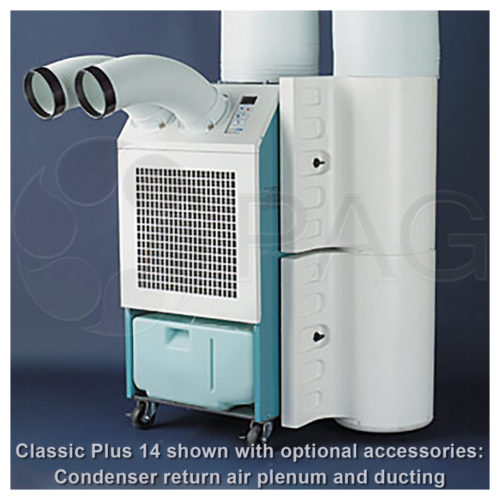

Accessories Diagram
Accessories are not included with the unit.
PAG-CP14-1 5″ Cold Duct Flange
PAG-CP14-2 Condensate Pump
PAG-CP14-3 5″ Cold Duct Hose
PAG-CP14-4 5″ Trim Ring
PAG-CP14-5 12″ Hot Duct Flange
PAG-CP14-6 12″ Hot Duct Hose
PAG-CP14-7 12″ Exhaust Duct Kit
PAG-CP14-8 12″ Cold Duct Hose
PAG-CP14-9 Air Plenum
PAG-CP14-10 Cover Plate
Specifications
Electronic Features
|
Control Panel
|
Programmable
|
---|---|---|
Thermostat Control | Electronic | |
Cooling Capacity
|
Rating Conditions: 95F at 60% RH
|
13,200 Btu/h
|
Electrical Characteristics
|
Voltage Requirement
|
1 Phase, 115V
|
Total Power Consumption | 1.3 kW | |
Current Consumption | 11.9 amps | |
Recommended Fuse Size | 15 amps | |
NEMA Plug Configuration | 5 – 15 | |
Min. Max. Voltage | 105 – 125 | |
Fans
|
Motor Output
|
0.24/0.19 kW
|
Evaporator
|
Fan Type
|
Centrifugal
|
Max Air Flow high/low | 440/380 CFM | |
Max External Static Pressure | 0.31 IWG | |
Condenser
|
Fan Type
|
Centrifugal
|
Max Air Flow high/low | 880/760 CFM | |
Max External Static Pressure | 0.19 IWG | |
Compressor
|
Type
|
Hermetic Rotary
|
Output | 0.9 kW | |
Refrigerant
|
R-410A
|
1.65 lb
|
Dimensions
|
W x D x H
|
19 x 26 x 41 in
|
Net Weight/Shipping Weight
|
166/197 lb
|
|
Power Cord
|
Gauge
|
14 AWG (3 – core)
|
Length | 10 ft | |

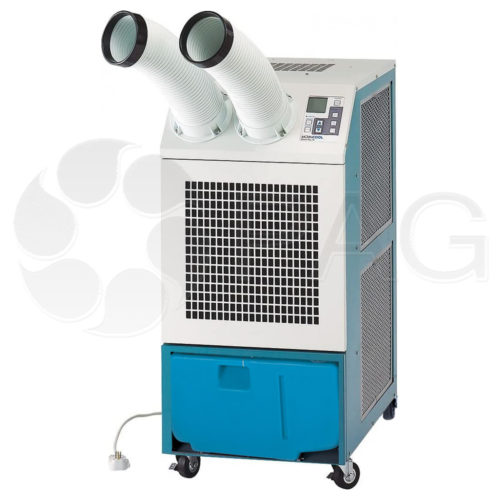

Condensate Tank Capacity
|
5 gal
|
|
Operating Conditions
|
Min. Max. (@ 50% RH)
|
70° – 113°F
|
Max. Duct Length
|
Per Cold Duct Hose
|
30 ft
|
Hot Duct Hose | 60 ft | |
Max. Sound Level
|
With Condenser – Duct high/low
|
57/55 dB(A)
|
Without Condenser – Duct high/low | 60/58 dB(A) |
