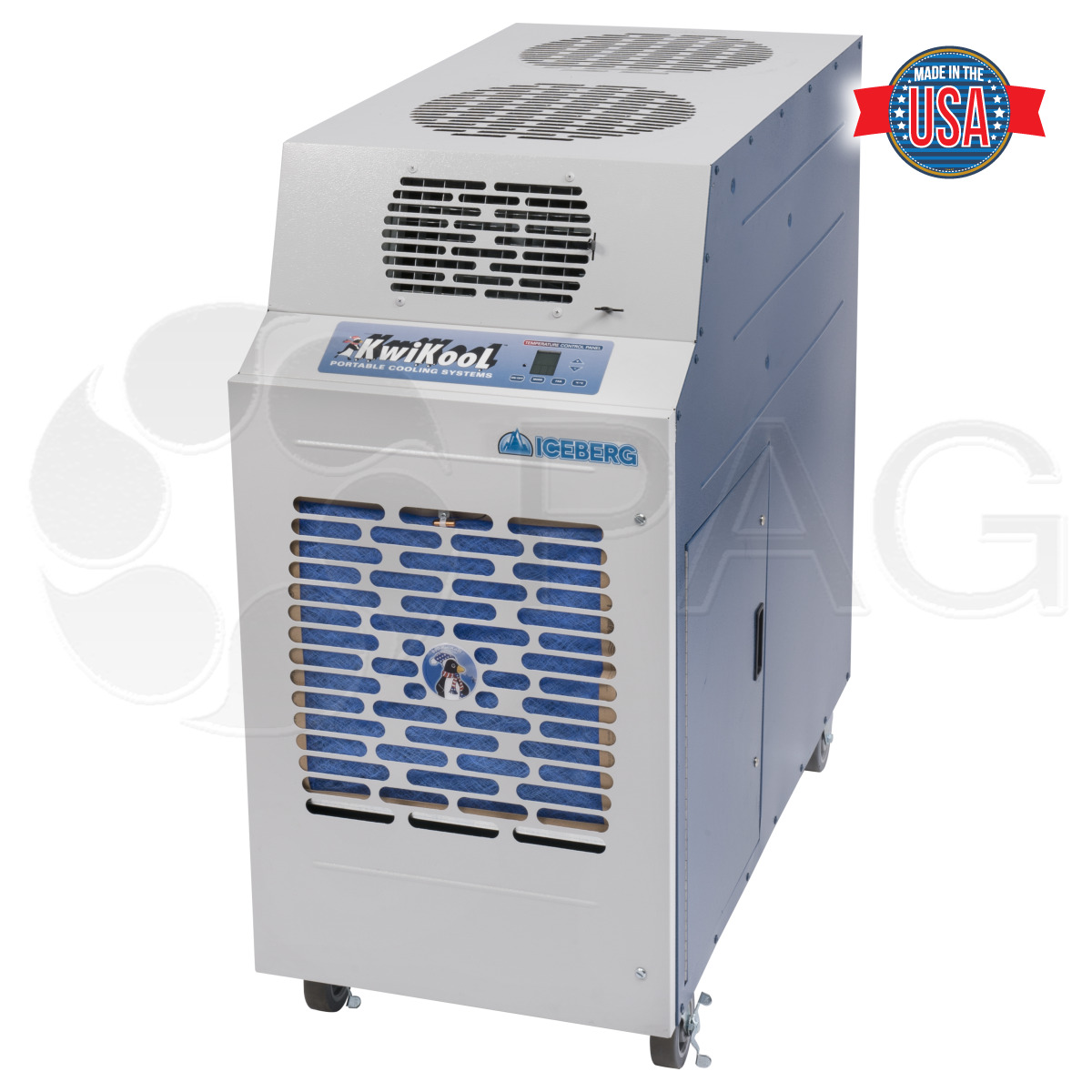

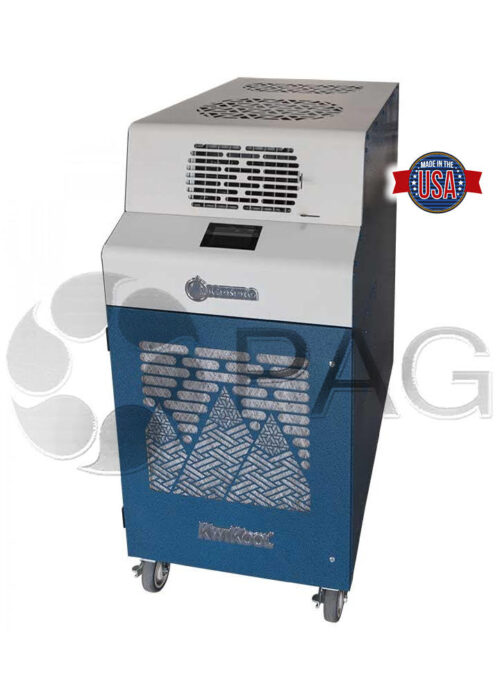

KwiKool KIB2411-2 – 23,500 BTU/h – 2 ton air-cooled – 115v/1Phase

$4,126.50

Easy-touch control pads make changing system settings a snap

The KwiKool KIB2411-2 (replaces the KIB2411) is the smallest unit possible in size and capacity in The Iceberg Series, KwiKool’s Flagship Line of portables.

This unique unit has the largest cooling capacity of any portable using a 115-volt circuit for both primary and backup air conditioning. With its full-featured design, high sensible cooling, and balanced air system, the KIB2411-2 is the perfect solution for cooling small server and IDF rooms.

The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.

All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency.

The KIB2411-2 runs on a standard 115-volt/20-amp circuit with an automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use. Manufactured in the United States of America.

Specifications

  • Wide Operating range of 60ºF-110ºF
  • ETL and CETL listed to UL and CSA standards
  • Includes KwiKool’s Exclusive I/O Integral Condenser where both inlet and outlets are ductable, without costly and bulky add-on kits
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap
  • Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
  • Input/Output Alarm Contacts for connection to building systems
  • Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility
  • Condensate overflow protection
  • Thermostatic Expansion Valve
  • Heavy duty compressor with automatic restart and short cycle protection
  • Motors and compressors have overload protection
  • High-pressure safety with manual reset
  • Low-pressure safety with automatic reset
  • Automatic freeze protection using hot gas bypass and fan cycling
  • Cold Air Supply CFM 725
  • NEMA 5-20
  • Weight 289
  • 20.375″L x 41.125″W x 42.75″H

Specification Sheet Operation Manual

Categories: , SKU: PAG-KIB2411-2-051916
Brands:

Description

KwiKool KIB2411-2 Diagram

KwiKool KIB2411-2 Diagram
