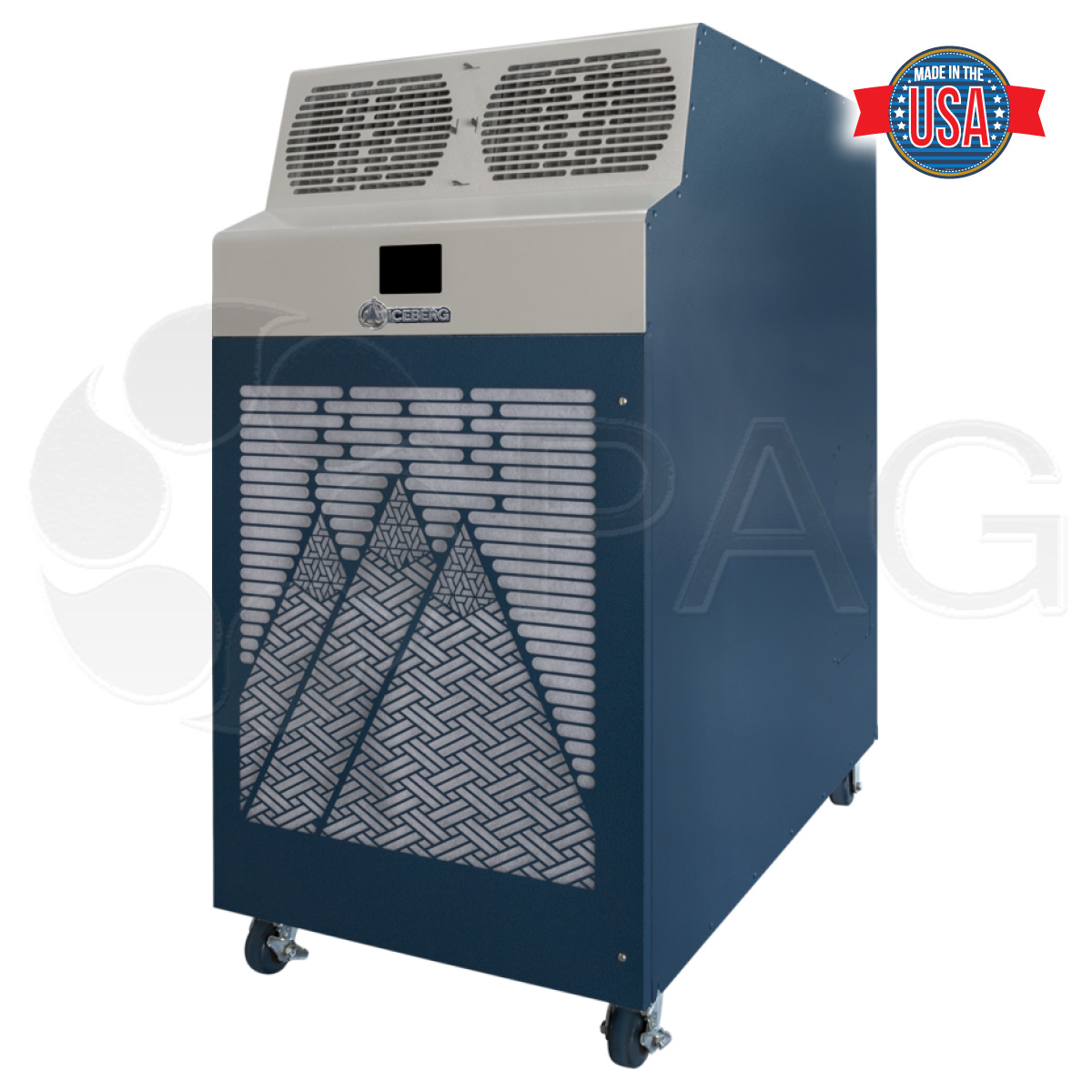

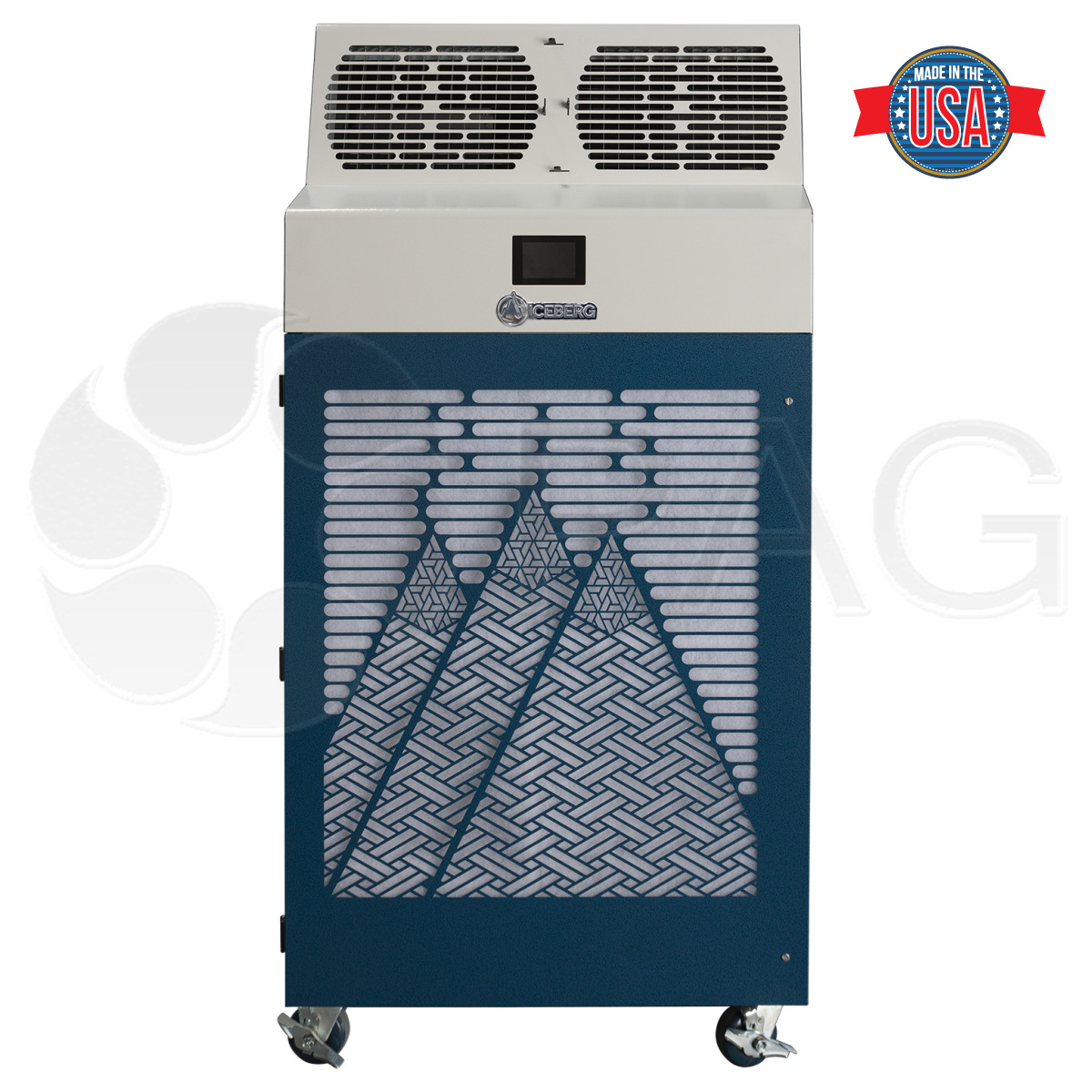

KwiKool KIB12043-2 -120,000 BTU/h – 12 ton air-cooled – 460v/3Phase

$14,346.50

Easy-touch control pads make changing system settings a snap

The KwiKool KIB12043-2 (replaces the KIB12043) is the only indoor portable offering a unit in this size and capacity.

Additionally, The KIB12043-2 is a dual-stage system for redundancy and economy. The Iceberg Series, KwiKool’s Flagship Line of portables is used for both primary and backup air conditioning. With its full-featured design, high sensible cooling, and balanced air system, the KIB12043-2 is the perfect solution for cooling server rooms.

The Iceberg Series is quick and easy with its “plug and play” technology and tops the competition in its small size, big performance and tons of features. From its hi-tech microprocessor controls and self-diagnostics to the long list of standard features (most of which are not even available in other brands), the Iceberg Series outperforms, outlasts, and out features other portables and all at a price that is comparable to the no-frills products that are available.

All Iceberg Series units come standard with our exclusive I/O Integral Condenser Dual Ducting that provides isolated and balanced air pressure within the space for maximum cooling efficiency. The condenser utilizes THD, KwiKool’s exclusive Twin Hyperdrive Technology with Ultra-Low Ambient Temperature Capability using a Variable Frequency Drive.

The KIB12043-2 has automatic restart after power failure and runs on a 460-volt/40-amp Three-Phase circuit, which must be installed by a qualified electrician. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use. Manufactured in the United States of America.

  • 120,000 BTU/H – 10 Ton capacity air-cooled
  • Compact yet Powerful
  • Two (2) stage refrigerant system
  • Ultra Low ambient controls utilizing VFD technology
  • Wide Operating range of 60ºF-110ºF
  • ETL and CETL listed to UL and CSA standards
  • Includes KwiKool’s Exclusive I/O Integral Condenser where both inlet and outlets are ductable, without costly and bulky add-on kits
  • THD Twin Hyper Drive Technology produces high volume of air without belts and eliminates all of the maintenance associated with belts
  • Multi-function microprocessor control with a large, easy-to-read LCD display
  • Easy-touch control pads make changing system settings a snap
  • Self-Diagnostics that include audible alarm and LCD visual display readout for system fault conditions
  • Input/Output Alarm Contacts for connection to building systems
  • Internal high lift condensate pumps and a 5- gallon reservoir tank for total condensate flexibility
  • 27.325″Wx51″Dx53″H
  • Weight – 537 lbs.

Specification Sheet coming Operation Manual coming Service Manual coming
