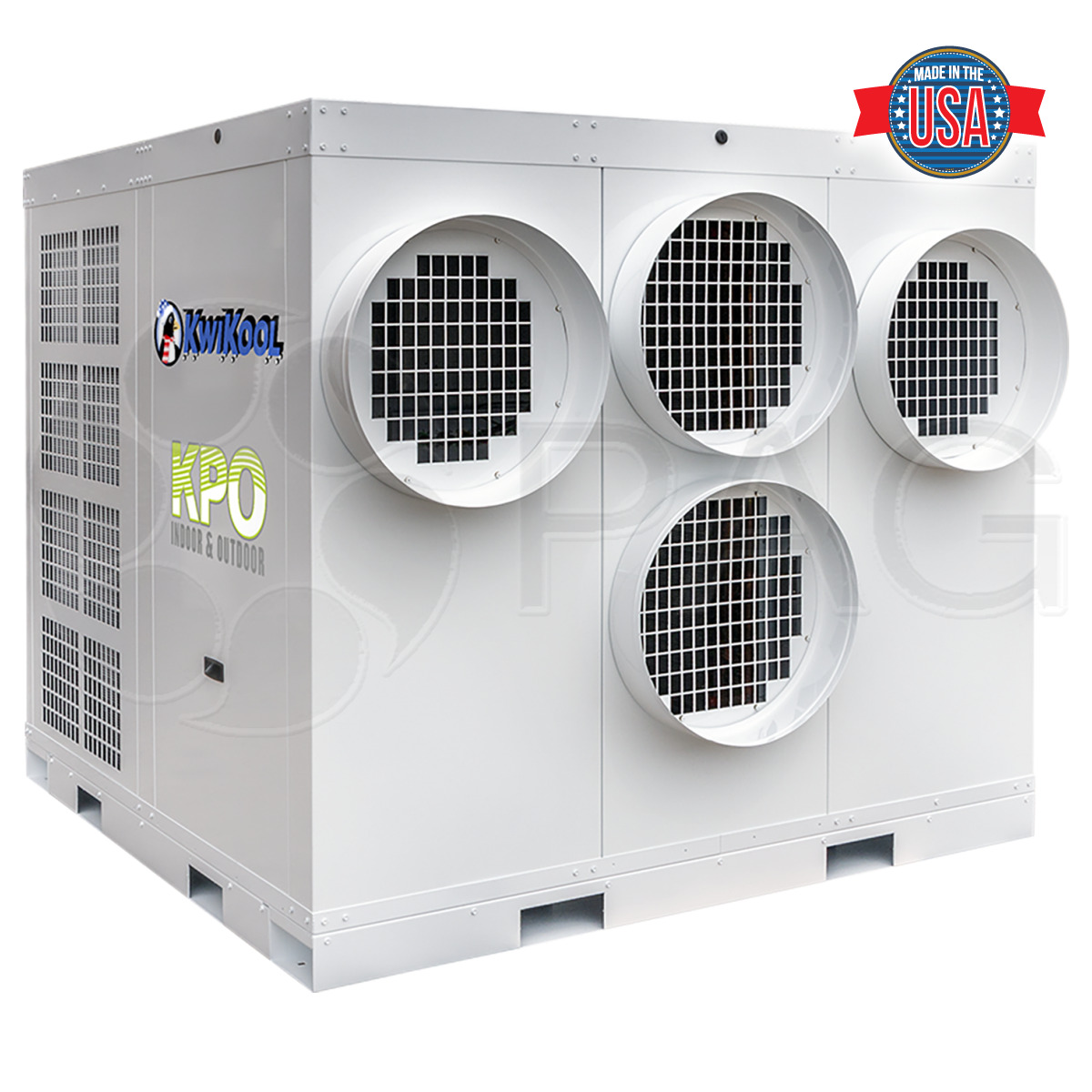

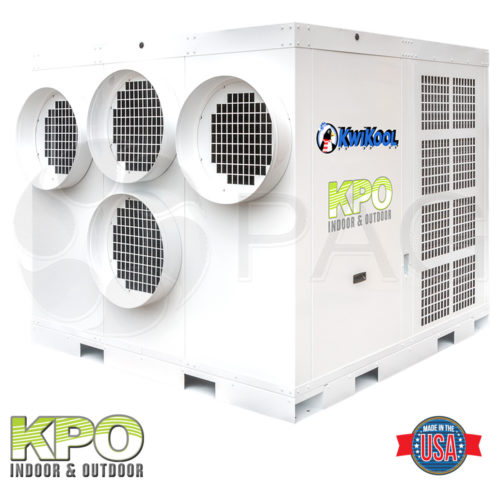

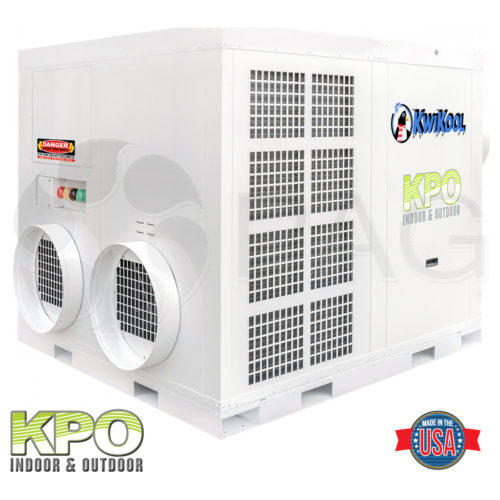

KwiKool KPO25-43 – Indoor/Outdoor 270,000 BTU/h – 25 ton air-cooled


KwiKool Made in the USA graphicThe KwiKool KPO25-43 at 25 tons has a small footprint and high capacity

The KwiKool KPO25-43 (25-ton or 270,000 BTU/h) is the most versatile unit in size and capabilities compared to other portables with similar capacity.

The KPO25-43 has an extremely small footprint that is ideal for difficult applications with limited available space at 66″ wide, 66″ long, and 60″ tall. The small size allows for up to three units to be loaded on a standard flatbed truck. The same flatbed truck can only transport one comparable 25-ton package unit.

The heavy-duty 12 gauge steel base offers forklift skid access for easy movement, setup, and transport. The unit can be placed outdoors with a duct running into a building space using high static blowers to reach an isolated heat load, such as a sealed interior room.

This KPO model offers advanced airflow capabilities, up to 75 feet of 20″ cold air supply and return ducts, which eliminates the need for the addition of a booster blower.

The KwiKool KPO25-43 runs on a 460-volt/80-amp 3-phase circuit with built-in cam-lock connections for easy electrical hook up.

The KwiKool KPO25-43 has a phase monitor that will automatically shut down if the voltage or phases are improper, which could damage the unit’s electrical components.

In addition, the condenser has low ambient temperature capability using a variable frequency drive that allows the unit to operate at temperatures below freezing. The unit also comes with an internal high lift condensate pump to adequately remove condensation.

And, Kwikool products are proudly MADE IN AMERICA.

  • 60,000 BTUh capacities
  • HD 16 gauge insulated G90 galvanized and epoxy powder coated cabinet mounted to a 12 gauge Skid for optimum durability, efficiency, low maintenance, and quiet operation
  • High Static Hyperdrive evaporator fans capable of running 100 foot of duct
  • Wide Operating range of 60ºF-110ºF
  • Low ambient condensing temperature controls utilizing Variable frequency drive technologies
  • ETL and CETL listed to UL and CSA standards
  • Multi-function Digital control with a large, easy-to-read LCD display

Specification Sheet coming Operation Manual coming Service Manual coming

Categories: , SKU: PAG-KPO25-43-09232020

Additional information

Weight 2150 lbs
Dimensions 66 × 66 × 60.4 in
