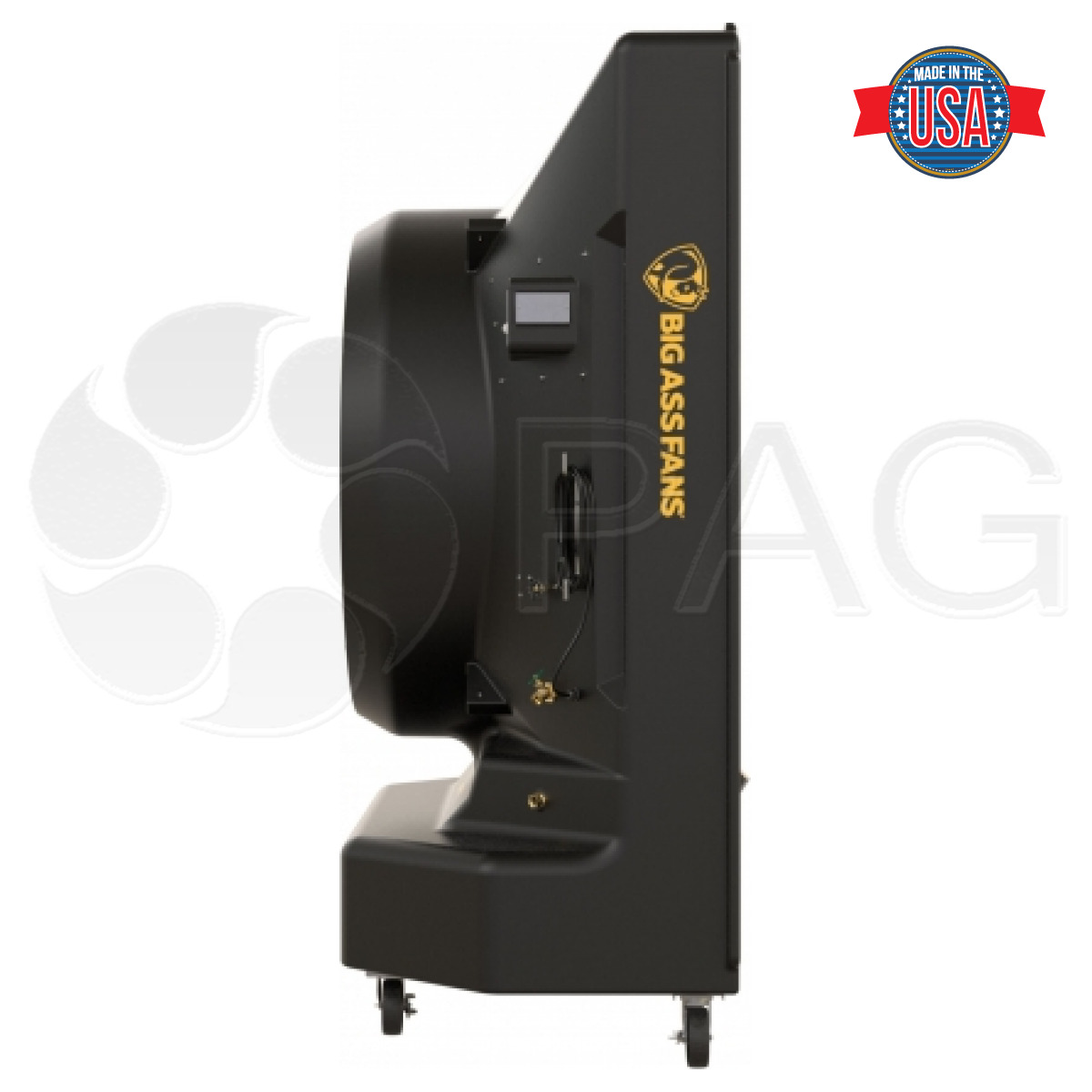

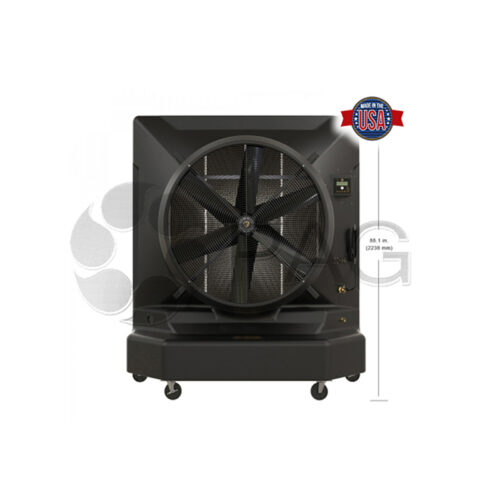

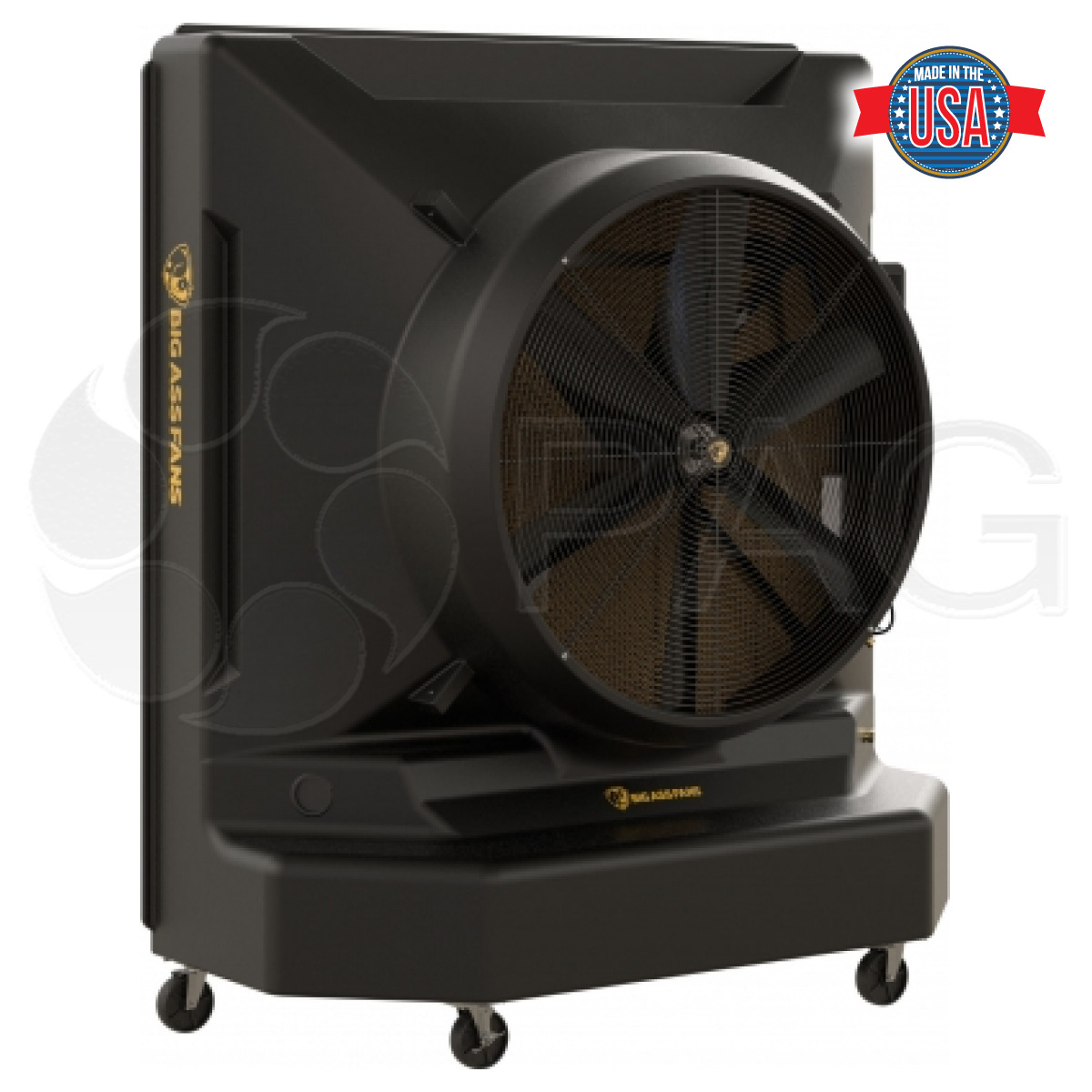

Big Ass Fans Cool-Space 500 Evaporative Cooler F-EV1-5001/120V


50-inch Evaporative Cooler for indoor or outdoor use

Big Ass Fans Cool-Space 500 delivers cooler conditions at a moment’s notice with up to 6500 sq.ft. coverage – ideal for large warehouses, service bays, and stadiums

The Cool-Space® 500 is durably engineered, with a quiet, efficient, direct-drive motor and advanced controls for convenient, hands-free use. This unit delivers lasting comfort to larger spaces both indoors and out. It is the ultimate solution in evaporative cooling, delivering instant airflow that lowers the air temperature in its coverage area by up to 33 °F (18 °C).

Made in the USA.



  • Variable-speed controls
  • 50-inch (127-centimeter) fan diameter
  • Input power and required breaker: 120 VAC, 60 Hz, 1Φ, 25 A
  • 16.5 amps
  • 16,500-24,000 cfm, 6,500 sq. ft. coverage area

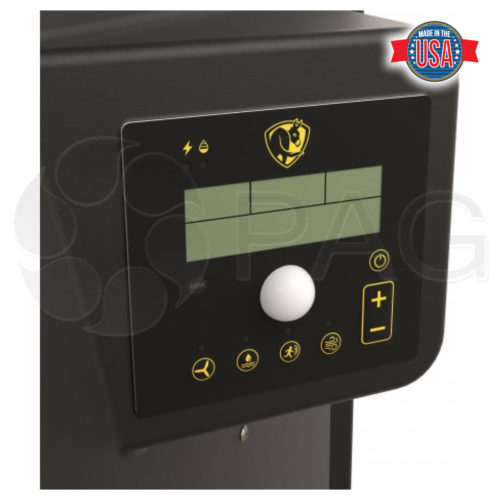

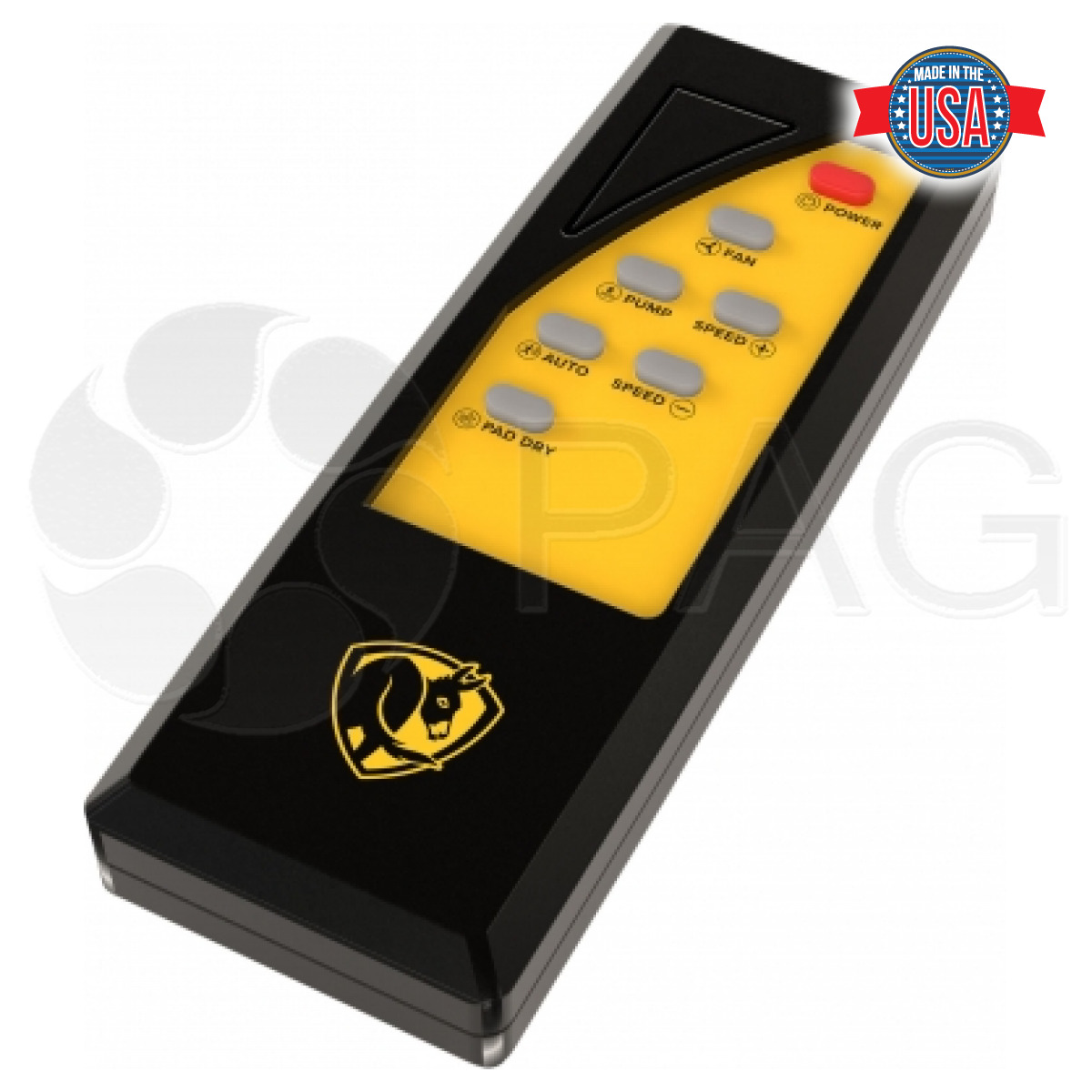

  • Control panel with backlit LED display, premium remote,
  • Occupancy sensor
  • Weight: 370 lb.
  • Locking swivel casters
  • 64-gallon (242-liter) reservoir lasts up to 10 hours without hose connection
  • Automatic low-water shutoff
  • Easily accessible drain plug
  • Inlet water supply pressure: 120 PSI max
  • Sound level: 60 dBA
  • Environment: well-ventilated indoor or outdoor space
  • Operating temperature: 0°F to 104 °F (-18°C to 40 °C)
  • 8-inch thick (20-centimeter) resin-treated cooling media
  • Auto-Dry
  • GFI plug and cord wrap for safe, portable operation
  • Quiet direct-drive motor


See our full line of Big Ass Fans

Technical Specifications Owner’s/Maintenance Manual
