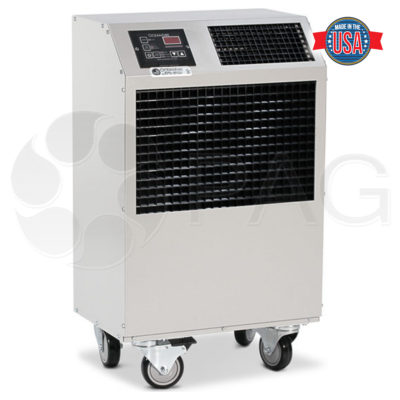

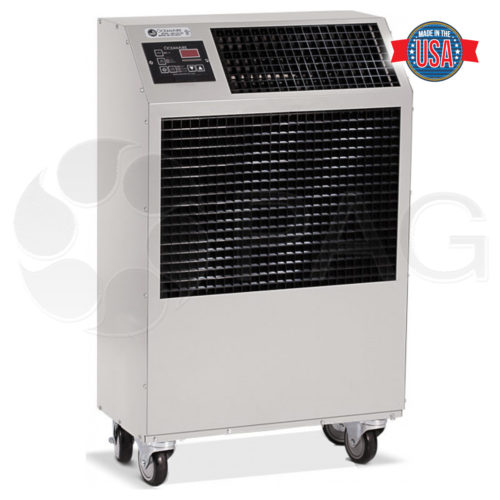

OceanAire OWC1811 – 18,000 BTU/h – 1.5 ton water-cooled – 115V/1Ph


Designed for small areas where ventilation is not available

The OceanAire OWC1811 is designed to target cool air to specific areas through a grill located on the upper front of the unit while rejecting heat into the waster water. This model is ideal for enclosed rooms or small areas without ventilation because water-cooled air conditioners do not require exhaust ducting, Water-cooled spot coolers are more efficient, cost less to run, and require less maintenance.

Housed in a gray polyester powder-coated, 18-gauge sheet metal cabinet, it uses 115V/1Ph.  A dedicated circuit and time-delay fuses/circuit breakers are recommended.

Set the thermostat at the “start” and “stop” temperatures you want and the machine will do the rest.

Accessories and factory installed options are available for OWC units for improved performance and versatility.  These include an exhaust duct kit, nozzle kits, and more.

Standard features include:

  • Voltage 115v, 60hz, 1ph
  • Amps 11.3
  • Total watts 1300
  • In rush amps 69
  • Plug type 5-15p, lcdi
  • Eer 13.8
  • Compressor rotary
  • Compressor hp 1-1/2
  • Compressor lra 63
  • Evap cfm – high 600
  • Evap motor hp 1/8
  • Condenser water flow
  • At 60°f water in 1.1 gpm
  • At 85°f water in 4.5 gpm
  • Water line connections
  • Water in 3/8 mf
  • Water out 3/8 mf
  • Drain 3/8 mf
  • Condensate removal pump automatic
  • 20’ vertical lift
  • Refrigerant charge 18 oz r-410a
  • Height 39-3/4 in
  • Width 24-1/4 in
  • Depth 13 in
  • Net weight 155 lb

Cooling Ambient Operating range is 65º TO 105º

Not Approved for Outdoor Use

This machine is also available in 208-230v/1Ph (OWC2412) and 460V/3Ph (OWC3634) 3PhV/3Ph

Specification Sheet CONTACT US for Rental Quote
