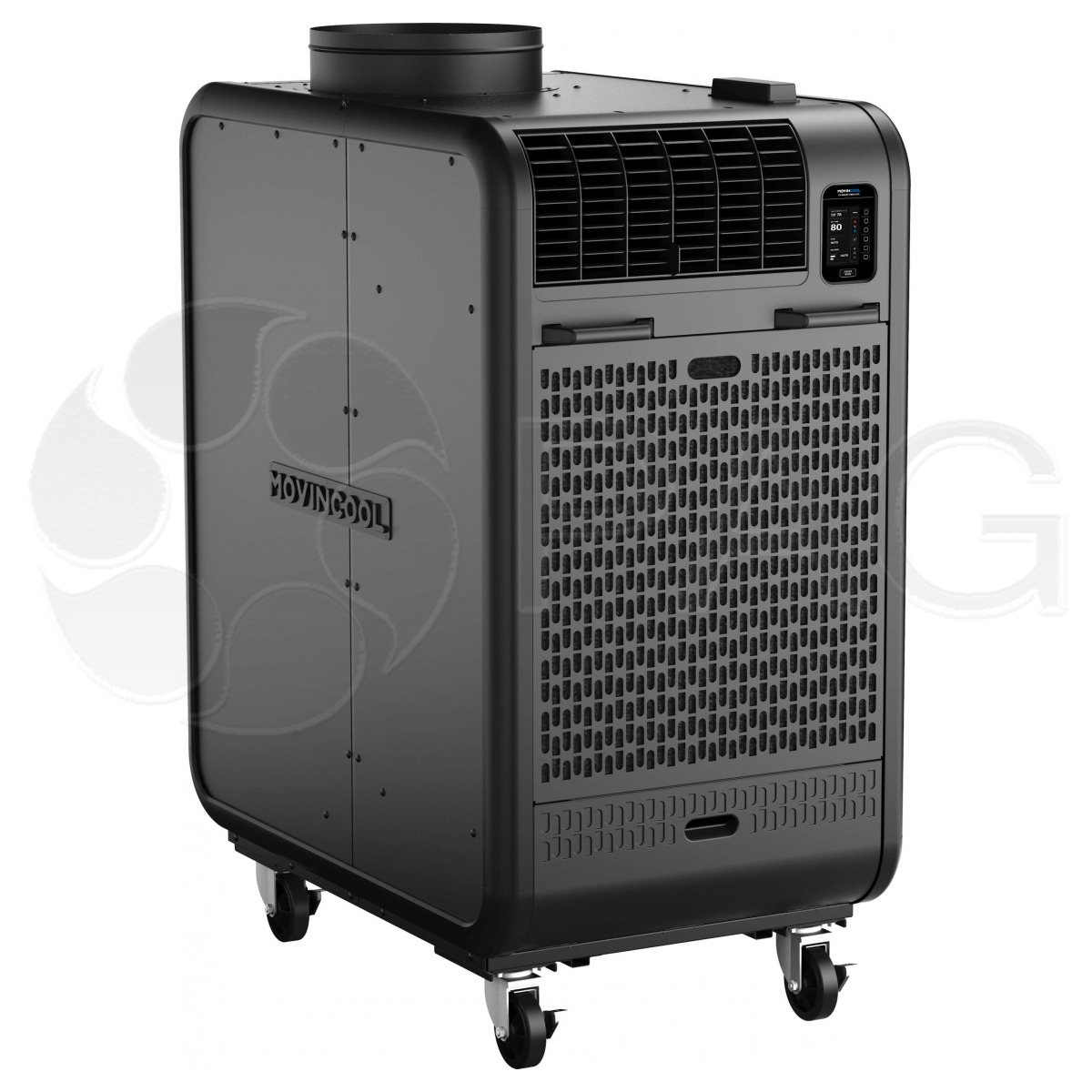

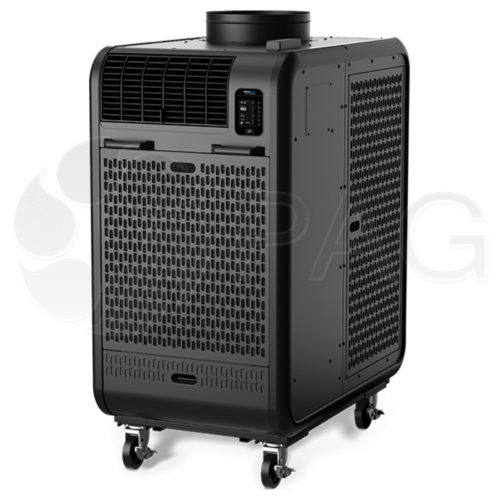

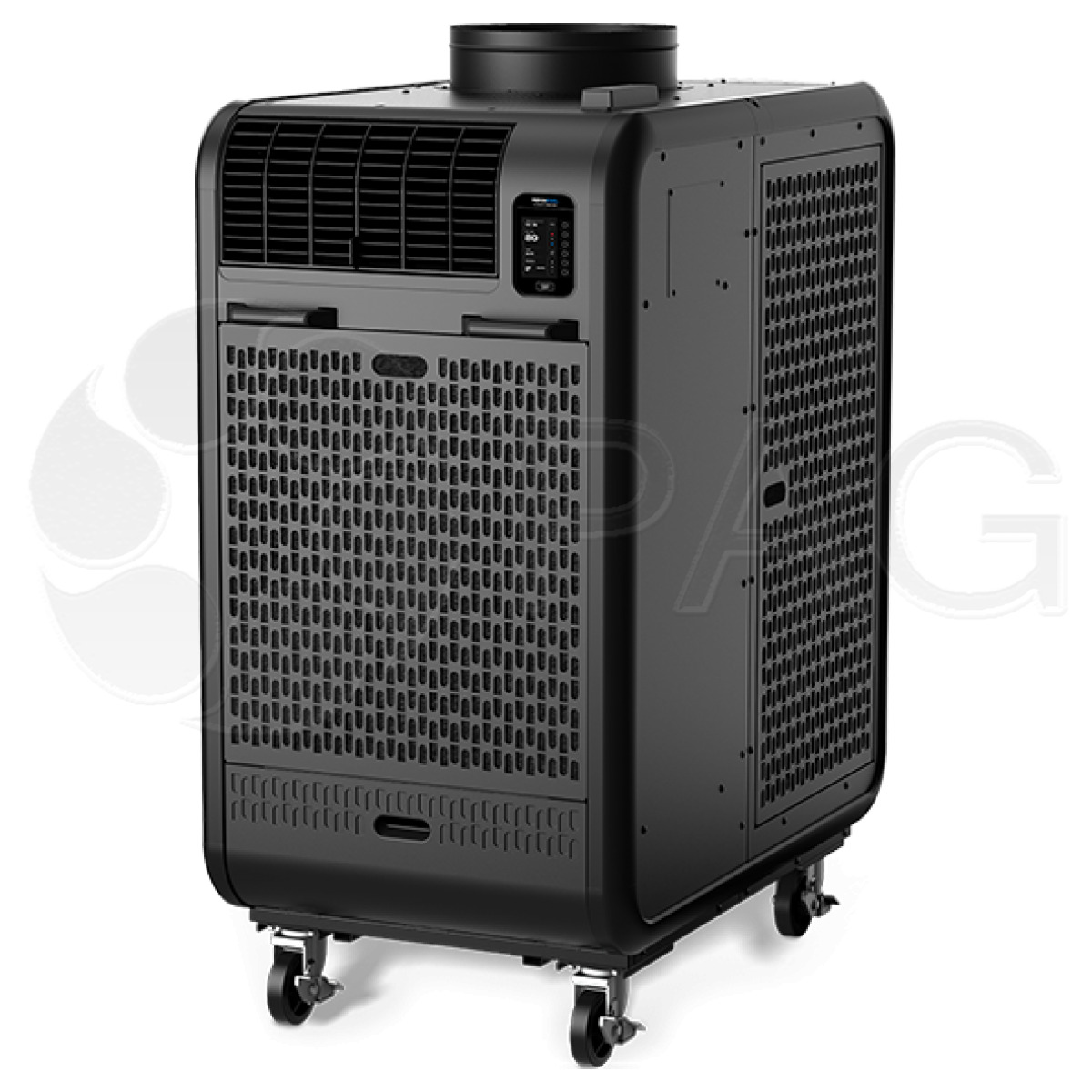

MovinCool Climate Pro K63 – 60,000 BTU/h – 5 ton 460v air-cooled

$12,800.00 $12,539.00

A powerful portable spot cooler wired for 460 V 60 Hz

Taking slightly less than 12 sq. ft. of floor space, the Climate Pro K63 brings temperatures under control with 60,000 Btu/h of cooling capacity.? It?s ideal when higher temperatures call for a big response to keep employees comfortable and ensure electronics do not overheat.

  • Powerful performance. Runs on 460 V 60 Hz with 20 amp circuit and consumes 6.6 kW.
  • Dual condensers. Cooling relief in temperatures from 65? to 105?F.
  • Built-in condensate pump. Send collected water to the drain ? no tanks to empty.



Specification Sheet Operation Manual Service Manual

Categories: , SKU: PAG-K63-020620-01
Brands:

Description

Accessories Diagram

Accessories are not included with the unit.

#

Part Num

Item

Description

1 481170-0470 Supply Air Flange Kit, 8-in dia. 8-in diameter white metal flange with wire clamp and mounting screws. Use with Self-Supported Duct.
1 481170-0460 Supply Air Flange Kit, 6-in dia. 6-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
1A 481170-0490 Supply Air Flange Kit, 6-in dia., Quick Connect type 6-in diameter white metal flange with wire clamp and mounting screws. Quick Connect Type. Use with Nozzle Kit.
2 484209-0490 Nozzle Kit, 6-in dia. 6-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring.
4 LAY45810-0080 Self-Supported Duct, 8-in dia. 8-in adjustable diameter, white plastic duct that extends from 6.5 to 10 feet in length.
4A LAY45810-0030 Flexible Air Duct, 8-in dia. 8-in diameter wire-reinforced, accordion-style duct in 25-ft lengths. Includes clamp.
5 481851-0210 Trim Ring, 6-in dia. 6-in diameter black plastic ring mounts as end caps for extension duct.
6 481769-0300 Duct Adapter Kit Two-piece metal frame converts airflow from louvers to 8-in self-supported ducts or flexible air ducts. (Ducts and flange sold separately)
6A 481769-0290 Nozzle Adapter Kit, 6-in dia. Adapter converts airflow from louvers to nozzles or air ducts. Up to four nozzles or air ducts.
8 LAY45820-0010 Flexible Air Duct, 16-in dia. (not shown) 16-in diameter wire-reinforced, accordion-style duct in 25-ft lengths. Includes clamp.
9 484490-1040 Celling Tile Kit, 16-in hole, metal 24-in x 24-in sheet metal tile with 16-in hole and built-in flange for exhaust air flexible duct kit
10 484350-1240 Outdoor Air Plenum White plastic plenum for return air to condenser. Hinged for filter cleaning.
14 484460-0010 Condensate Float (not shown) Controls water level in condensate tanks. (For K60/K63 only)
14 484730-0020 Condensate Tank Drain tank storage for condensation. Requires condensate float (sold separately).
15 484350-1210 Indoor Air Plenum White plastic plenum for return air to evaporator.

Specifications

Electronic Features

Control Panel Programmable

Cooling Capacity

Rating Conditions: 95?F @ 60% RH 60,000 Btu/h

Electrical Characteristics

Voltage Requirement (60 Hz) 3 Phase, 460 V
Total Power Consumption 6.6 kW
Current Consumption 12.2 amps
Recommended Fuse Size 20 amps
NEMA Plug Configuration L16 – 20
Min. – Max. Voltage 440 – 480 V

Fans

Motor Output 0.56 kW Evaporator
0.30 kW x 2 Condensers

Evaporator

Fan Type Centrifugal
Max. Air Flow – High/Mid/Low 1770/1710/1650 CFM
Max External Static Pressure 0.9 IWG

Condenser

Fan Type Centrifugal
Max Air Flow 2400 CFM
Max. External Static Pressure 0.85 IWG

Compressor

Type Hermetic Scroll
Output 3.45 kW

Refrigerant

Type R-410A

Dimensions

W x D x H 31 x 55 x 64 in

Weight

Net / Shipping 659 / 743 lb

Power Cord

Gauge 12 AWG (4 -core)
Length 6 ft

Condensate Tank

Auto Pump Included

Operating Conditions

Min. – Max. @ 50% RH 65? – 105?F

Max. Duct Length

Per Cold Duct Hose 40 ft
Hot Duct Hose 100 ft

Max. Sound Level

With Condenser Duct – High/Mid/Low 69/68/67 dB(A)
Without Condenser Duct – High/Mid/Low 71/70/69 dB(A)
