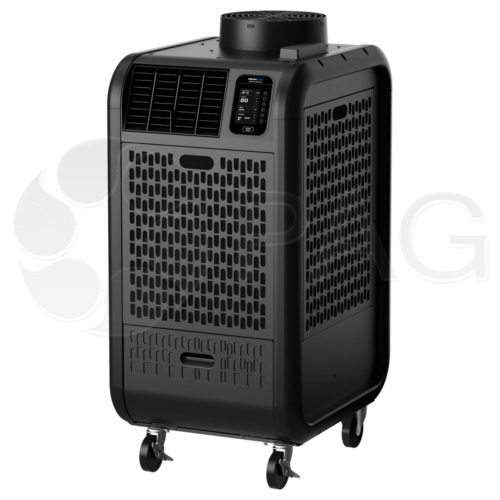

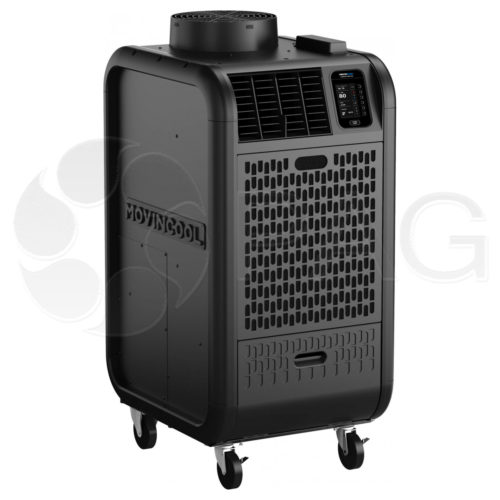

MovinCool Climate Pro K18 – 16,800 BTU/h – 1.4 ton air-cooled

$4,225.99$4,625.99

Pricing based on model configuration

Contact Our Expert Team

Ideal for keeping people comfortable and productive

MovinCool Climate Pro K18 Options:

Basic machine

Basic machine with Condensate Pump

Basic machine with Hot Duct Kit

Basic machine with Pump and Duct Kit

The MovinCool Climate Pro K18 portable AC has all the benefits of our proven Climate Pro Series, PLUS new features designed to increase performance and control.

The Climate Pro K18 is the most versatile of our portable AC units. It is instantly ready to provide cool air in the hottest environments such as production lines, outdoor events, manufacturing processes, injection molding, metal forming, and much more.

The Climate Pro features a programmable temperature controller allowing the user to “set” the desired temperature.

At 16,800 BTU/h of cooling, the Climate Pro K18 provides the maximum capacity possible operating on a standard 15V/20 amp circuit using 1.7 kW.

By cooling only the area that needs it, the Climate Pro K18 portable A/C saves you money while protecting people and equipment and speeding up processes.

  • Provides 16,800 Btu/h of cool air providing maximum spot cooling to the room that needs it.
  • Programmable Digital Controller
  • The unit operates on standard 115V power.
  • Provides cooling down to 65°F, the ideal operating temperature for heat-sensitive electronics.
  • ETL Listed

Specification Sheet Operation Manual Service Manual

CONTACT US for a Quote

Pick the base unit or add important options:

Categories: , SKU: PAG-K18-020620
Brands:

Description

Accessories Diagram

Accessories are not included with the unit.

#

Part Num

Item

Description

1 481170-0450 Supply Air Flange Kit, 5-in dia. 5-in diameter white metal flange with wire clamp and mounting screws. Use with supply air ducts.
2 484209-0480 Nozzle Kit, 5-in dia. 5-in diameter plastic nozzle that extends up to 2 feet in length. Quick connect type. Includes trim ring.
4 481744-0091 Self-Supported Duct, 5-in dia. 5-in diameter, white plastic duct that extends from 6.5 to 10 feet in length.
5 481851-0200 Trim Ring, 5-in dia. 5-in diameter black plastic ring mounts as end caps for extension duct.
6 481170-0480 Supply Air Flange Kit, 5-in dia., Quick Connect type 5-in diameter white metal flange with wire clamp and mounting screws. Quick Connect Type. Use with supply air ducts.
6A 481769-0280 Nozzle Adapter Kit, 5-in dia. Adapter converts airflow from louvers to nozzles or air ducts.
8 LAY45771-0060 Flexible Air Duct, 12-in dia. (not shown) 12-in diameter wire-reinforced, accordion-style duct in 10-ft length for outdoor air exhaust. Includes clamp.
9 LA146373-8280 Celling Tile Kit, 12-in hole, plastic 24-in x 24-in plastic white tile with 12-in hole for exhaust air self-supported duct.
9 484490-1030 Celling Tile Kit, 12-in hole, metal 24-in x 24-in sheet metal tile with 12-in hole and built-in flange for exhaust air flexible duct kit
10 484350-1160 Outdoor Air Plenum White plastic plenum for return air to condenser. Hinged for filter cleaning.
11 484789-0210 Condensate Pump Kit, 110V 115V pump kit includes 3/8-in diameter x 20-ft length hose. Includes installation hardware. Maximum lift: 20 feet at 115V

Specifications

Electronic Features

Control Panel Programmable

Cooling Capacity

Rating Conditions: 95?F @ 60% RH 16,800 Btu/h

Electrical Characteristics

Voltage Requirement (60 Hz) 1 Phase, 115 V
Total Power Consumption 1.7 kW
Current Consumption 14.5 amps
Recommended Fuse Size 20 amps
NEMA Plug Configuration 5-20
Min. – Max. Voltage 104 – 127 V

Fans

Motor Output 0.23 kW

Evaporator

Fan Type Centrifugal
Max. Air Flow – High/Mid/Low 540/500/440 CFM
Max. External Static Pressure 0.31 IWG

Condenser

Fan Type Centrifugal
Max. Air Flow – High/Mid/Low 770/710/630 CFM
Max. External Static Pressure 0.23 IWG

Compressor

Type Hermetic Rotary
Output 0.9 kW

Refrigerant

Type R-410A

Dimensions

W x D x H 22 x 27 x 47 in

Weight

Net / Shipping 172 / 209 lb

Power Cord

Gauge 12 AWG (3-core)
Length 10 ft

Condensate Tank

Capacity 5 gal

Operating Conditions

Min. – Max. 65?F @ 50% RH – 95?F @ 60% RH

Max. Duct Length

Per Cold Duct Hose 25 ft
Hot Duct Hose 60 ft

Max. Sound Level

With Condenser Duct – High/Mid/Low 63/61/59 dB(A)
Without Condenser Duct – High/Mid/Low 65/63/60 dB(A)

Additional information

Weight 172 lbs
Dimensions 22 × 27 × 47 in
