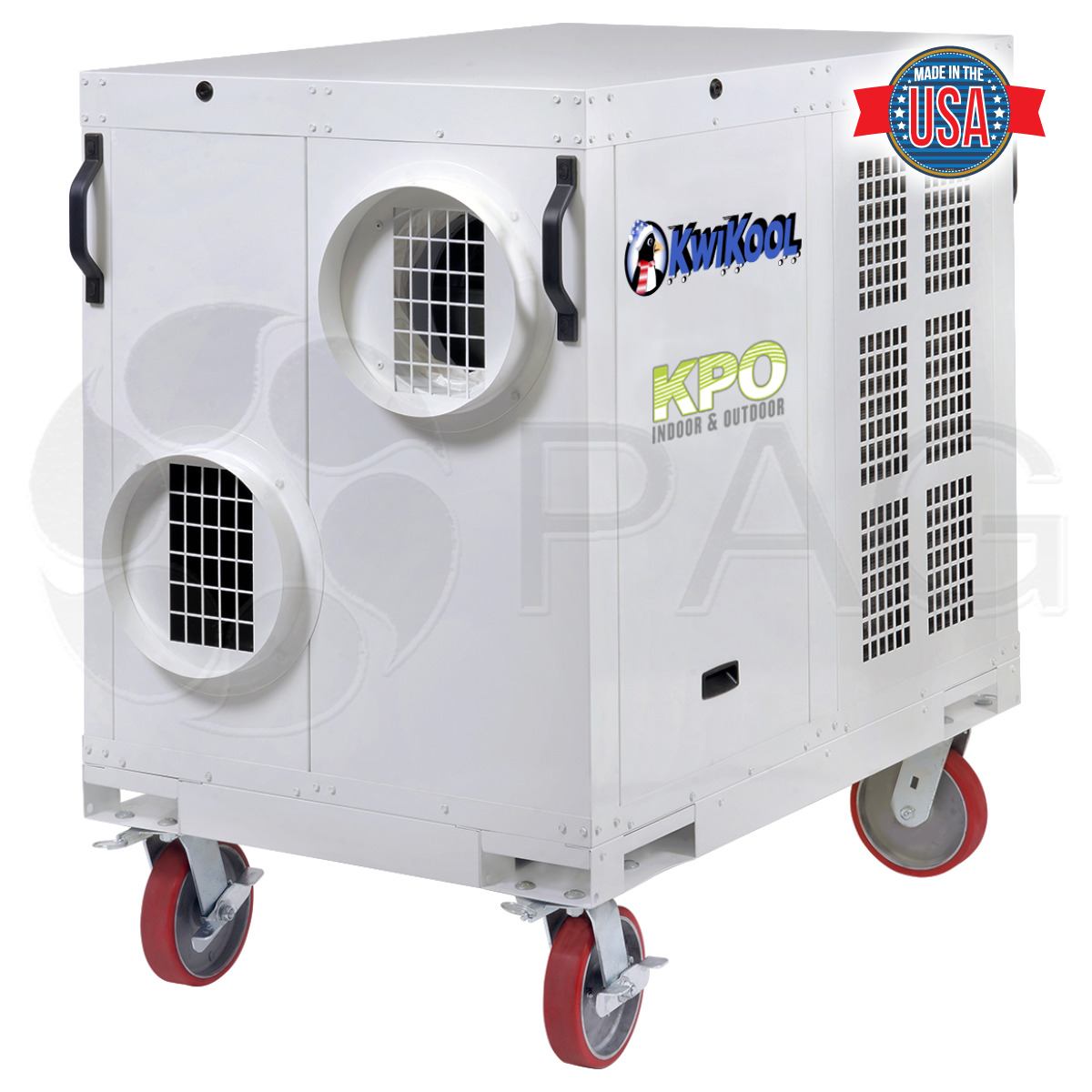

KwiKool KPO5-23 – Indoor/Outdoor – 60,000 BTU/h – 5 ton 3pH air-cooled


Contact Our Expert Team

The KwiKool KPO5-23 is the most versatile unit in size and capacity

KwiKool Made in the USA graphicAs a member of The KPO Series, KwiKool’s Indoor/Outdoor Line of portables, the KwiKool KPO5-23 has an extremely small footprint that is ideal for difficult applications that require moving cold air to a hard to reach heat load, such as a sealed interior room.

The unit can be placed outdoors with duct running into a building space or it can be placed inside a building and ducted into an interior space. The KPO Series offers advanced airflow capabilities, up to 50 feet cold air return and supply and up to 65 feet of hot air exhaust ducting. All KPO models are 32 inches wide and will fit through a standard 36-inch door.

The KPO5-23 runs on a 230-volt/40-amp 3-phase circuit, which must be hard-wired by a qualified electrician.

The condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that will operate at temperatures below freezing.

The heavy-duty base has removable wheels and forklift skid access for easy movement, setup, and transport. All KPO models come with a high functional phase monitor for electrical protection from unacceptable power, which damages electrical components. The unit also comes with an internal high lift condensate pump.

Ask about the Optional Heating Capabilities!

  • 60,000 btuh capacities
  • Compact yet Super Powerful
  • HD 16 gauge insulated G90 galvanized and epoxy powder coated cabinet mounted to a 12 gauge Skid for optimum durability, efficiency, low maintenance and quiet operation
  • HD Swivel and Locking Casters
  • Narrow compact size allows the KPO to go through a standard doorway
  • High Static Hyperdrive evaporator fans capable of running 100 foot of duct
  • Wide Operating range of 60ºF-110ºF
  • Low ambient condensing temperature controls utilizing Variable frequency drive technologies
  • ETL and CETL listed to UL and CSA standards
  • Multi-function Digital control with a large, easy-to-read LCD display
  • Internal high lift condensate pumps for total condensate flexibility

Specification Sheet Operating Manual KPO Series comparison chart

CONTACT US for a Quote

Categories: , SKU: PAG-KPO523-040217-01

Additional information

Weight 670 lbs
Dimensions 48 × 32 × 49 in
