KwiKool KPO12-43 – Indoor/Outdoor – 135,000 BTU/h – 12 ton 460v air-cooled

Original price was: $36,595.00.Current price is: $27,446.25.

Contact Our Expert Team

The KwiKool KPO12-43 runs on 460v with 3 phases on 40 amps

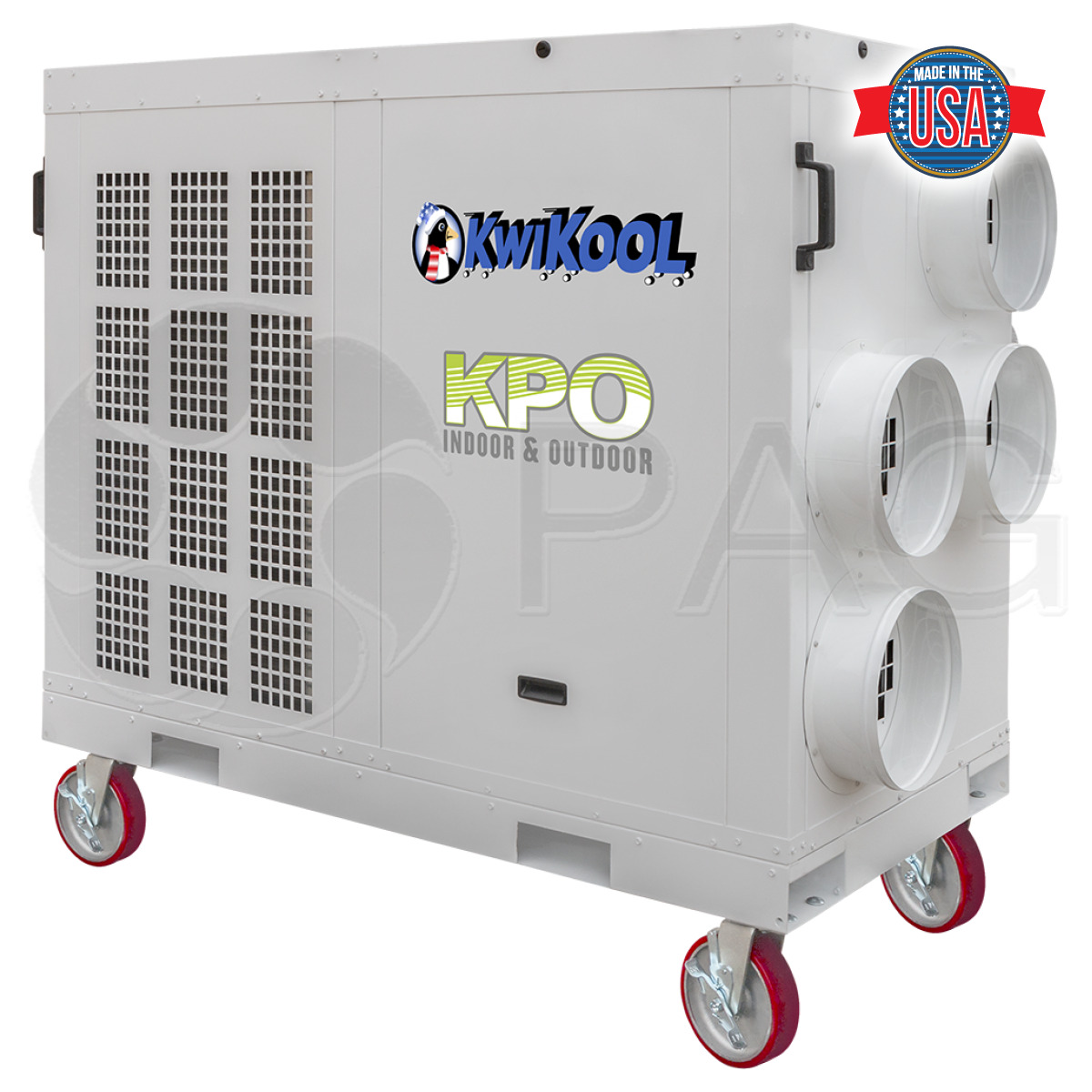

KwiKool Made in the USA graphicThe KwiKool KPO12-43 (nominal 12-ton or 135,000 BTU) is the most versatile unit in size and capacity in The KPO Series, KwiKool’s Indoor/Outdoor Line of portables

The KPO12-43 has an extremely small footprint that is ideal for difficult applications that require moving cold air to a hard to reach heat load, such as a sealed interior room.

The unit can be placed outdoors with duct running into a building space or it can be placed inside a building and ducted into an interior space. The KPO Series offers advanced airflow capabilities, up to 75 feet cold air return and supply and up to 100 feet of hot air exhaust ducting. All KPO models are 32 inches wide and will fit through a standard 36-inch door.

The KwiKool KPO12-43 runs on a 460-volt/40-amp 3-phase circuit with built-in cam-lock connections, which must be hard-wired by a qualified electrician.

The condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that will operate at temperatures below freezing.

The heavy-duty base has removable wheels and forklift skid access for easy movement, setup, and transport. All KPO models come with a high functional phase monitor for electrical protection from unacceptable power, which damages electrical components. The unit also comes with an internal high lift condensate pump.

  • 60,000 BTUh capacities
  • HD 16 gauge insulated G90 galvanized and epoxy powder coated cabinet mounted to a 12 gauge Skid for optimum durability, efficiency, low maintenance and quiet operation
  • HD Swivel and Locking Casters
  • Narrow compact size allows the KPO to go through a standard doorway
  • High Static Hyperdrive evaporator fans capable of running 100 foot of duct
  • Wide Operating range of 60ºF-110ºF
  • Low ambient condensing temperature controls utilizing Variable frequency drive technologies
  • ETL and CETL listed to UL and CSA standards
  • Multi-function Digital control with a large, easy-to-read LCD display

Specification Sheet Operation Manual KPO Series comparison chart

See our full line of KwiKool products – there’s one just right for your application.

CONTACT US for a Quote

Categories: , SKU: PAG-KPO1243-040217-01

Additional information

Weight 1114 lbs
Dimensions 64 × 32 × 60 in
