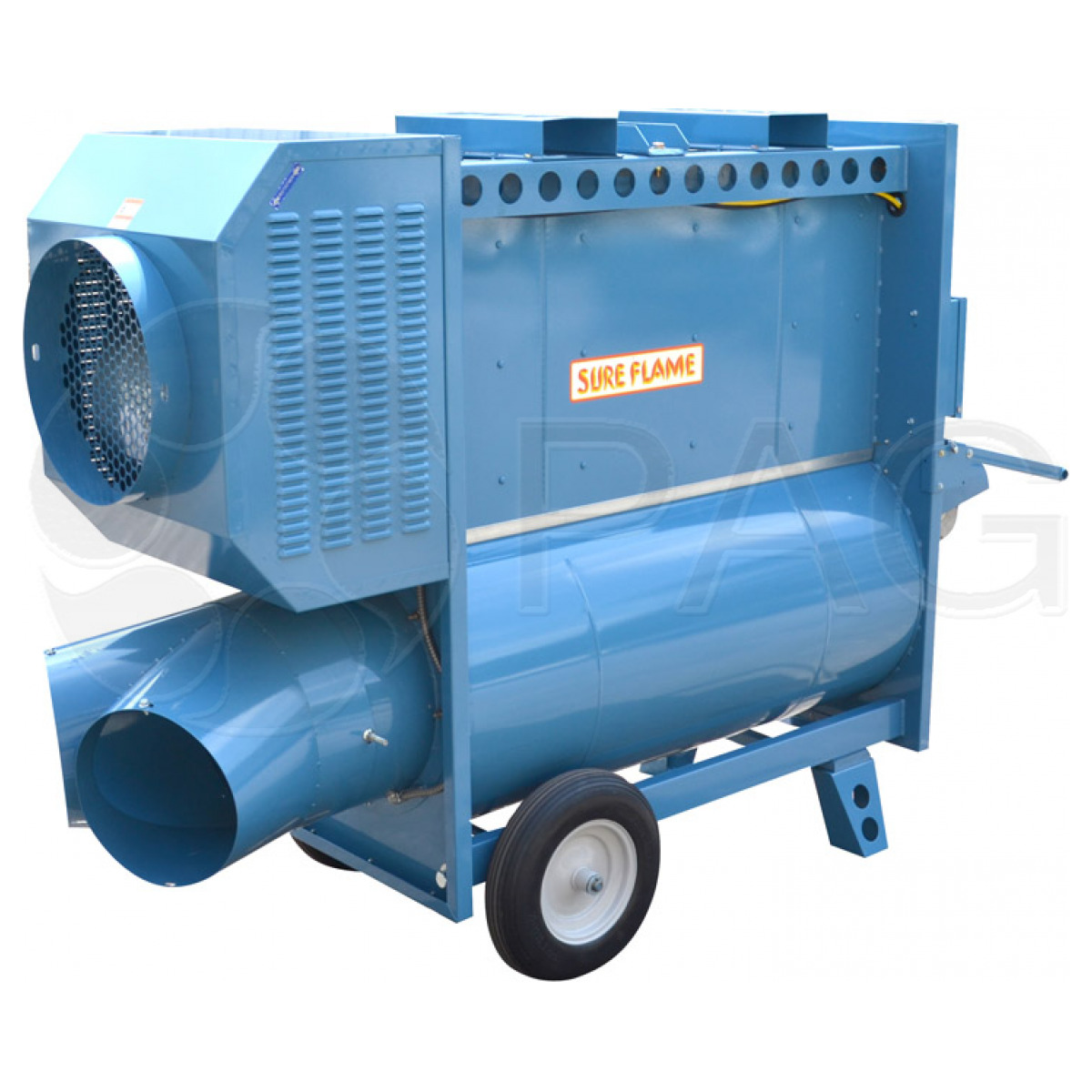

Heat Wagon IX405 – indirect fire, duel-fuel heater – 400,000 BTU/hr

Features

• CSA approved
• Built “construction tough” for long life and reliability
• Stackable design for efficient off-season storage
• 16″ puncture proof wheels for easy maneuverability
• Designed with return air recirculation for increased fuel savings
• 3-year warranty on the combustion chamber
• Single-stage external thermostat included
• Highest temperature rise and fand rating among other 400K IDF models
• Dual fuel selector valve enables a quick change between propane and natural gas
• Operates on 15 amp, 120V circuit
• 90% rated efficiency

Specifications

• Input 400,000 BTU/Hr
• Fuel Vapor Propane/Natural Gas
• Gas Consumption 4.4 GPH Propane/400 CFH NG
• Electrical 120 V, 12 Amps
• Fan 5000 CFM
• Thermostat On/Off
• Temp Rise 250º F @ 0ºF Ambient
• Rated Efficiency 90%
• Dimensions 82” x 29” x 59”
• Duct Size 2-12” or 1-16” outlets
• Recirculation Inlet 16”
• Weight 560 lbs.

Specification Sheet Operation/Service Manual
