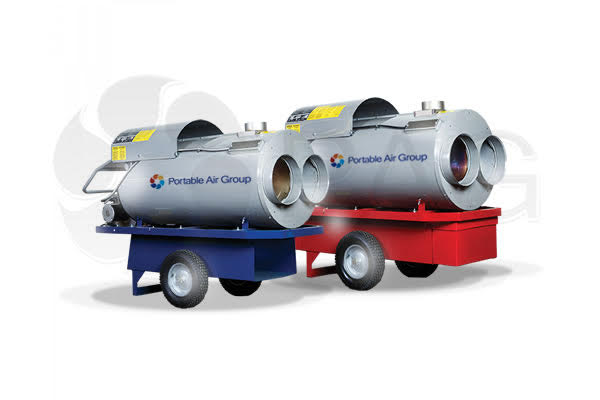

Frost Fighter Indirect Fire IDF500 – 420,000 BTU/h – 110-120V/15amp


Contact Our Expert Team

The perfect solution where clean, dry heat is required to complete a project on time and within budget.

The Frost Fighter Indirect Fire IDF500 offers more options than any other industrial/commercial heat unit on the market today.

Ductable up to 50ft, the IDF500 comes standard with many features designed for safety, performance, and efficiency not found on competitive systems.  These include a fully-insulated jacket, industrial grade burner, stainless steel heat exchanger, satin-coated steel with powder-coated paint, independent fan and blower, heavy-duty 6-ply pneumatic tires, polarity and running lights, and a flexible duct attachment.  These units are North American made.

Call for details and options: 1-866-948-5300

Optional items: Remote thermostat, heat recovery system, XLT large 60 US-gallon fuel tank, and foam-filled tires.

Frost Fighter IDF500 Specifications:

  • Indirect Fire
  • BTU/h: 420,000
  • Fuel Type: Oil/Diesel/Kerosene
  • CFM: 3,100
  • Fan Motor: ½HP 3,450RPM
  • Static Pressure: .5 inches
  • Flue Size: 6 inches
  • Outlet Configuration: Dual 12” or Single 16”
  • Electrical Requirements: 110-120V/15amp
  • Net Weight: 420 lbs.
  • Dimensions (L x W x H): 70” x 35” x 52”
  • Crated Shipping Dimensions (L x W x H): 83” x 37” x 52”
  • Crated Shipping Weight: 580 lbs.
  • CSA/ETL Certified

Frost Fighter IDF500 Standard Features:

  • Fully Insulated Jacket
  • Industrial Grade Burner
  • Stainless Steel Heat Exchanger
  • Satin Coated Steel w/ Powder Coated Paint
  • Independent Fan & Blower
  • Heavy Duty 6-Ply Pneumatic Tires
  • Polarity & Running Lights
  • Flexible Duct Attachment – Pin Lock or Belt Cuff
  • GenySis Primary Control w/ Diagnostic Reader (Oil)
  • 42 US Gallon DW Fuel Tank w/ Gauge (Oil)
  • 3 Trials for Ignition (LP/NG)
  • EZ Ball-Valve Switch Over (LP/NG)
  • Automatic High Limit Safety Switch-off
  • Lifting Bail
  • ETL-certified

Intertek ETL logo






Technical Specifications Owner’s/Installation Guide
CONTACT US for a Quote

CONTACT US for a Quote

Additional information

Weight 420 lbs
Dimensions 70 × 35 × 52 in
