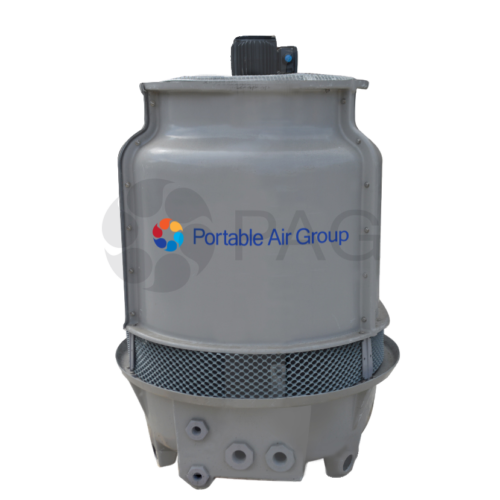

Cooling Tower Model T-25 — 75,000 BTU/h

Our compact cooling towers can be paired with portable air conditioning units to provide cooling in challenging conditions where recirculation of water is important for conservation and cost-effective operations.  The cooling towers have a small footprint (3 ft. x 3 ft.).  The operational weight is 229 lbs. These can easily be placed on a rooftop or elsewhere.  Assembled in the USA.

Call for details and options: 1-866-948-5300

Model T-25 Features

  • Fan Motor: 1/6 HP, 110/220V, 1PH, 60Hz (Electrical hookups are inside the junction box located on fan motor)
  • Cooling Capacity: 75,000 BTU/h
  • Air Volume: 2,100 CFM
  • Water Inlet: 1.5 inches
  • Water Outlet: 1.5 inches
  • Tower Diameter: 33.5 inches
  • Tower Height: 52 inches
  • Operating Weight: 229 lbs.
  • Dry Weight: 86 lbs.
  • Nozzle Type: Round, Female (NPT) Threaded, Nylon
  • Shipping Weight: 120 lbs.
  • Shipping Dimensions: 36″ x 36″ x 63″
