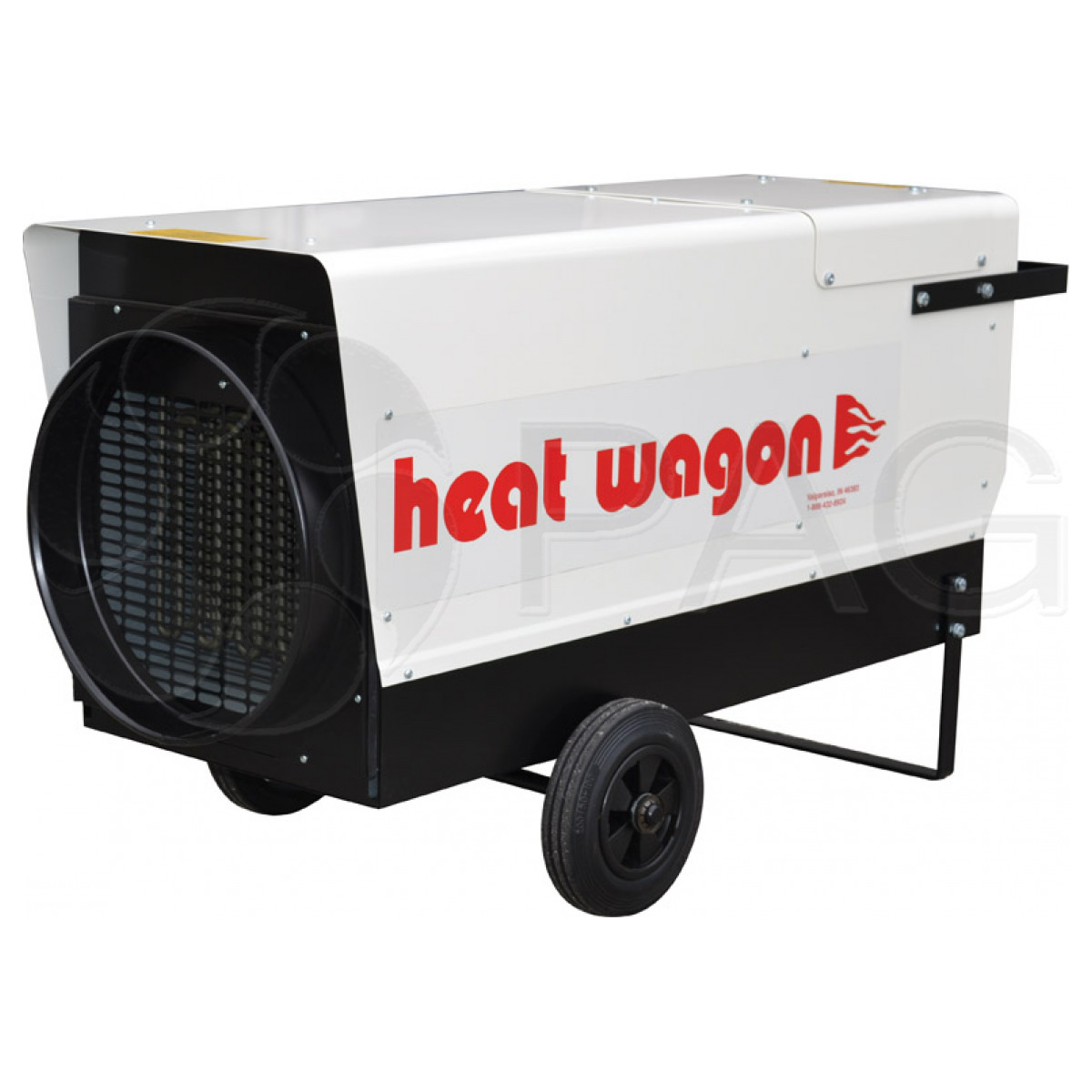

Heat Wagon P4000 – electric heater – 136,500 BTU/h

$4,009.00

Features:

  • UL approved
  • Built-in thermostat
  • Direct wiring of power supply to the terminal block
  • Ductable
  • Forced-air blower
  • Overheat protection
  • Rugged steel housing

Benefits:

  • Cycles heater on/off automatically
  • No need for expensive receptacles
  • Ducted up to 50 feet
  • Circulates room air for efficient use of heated air
  • The unit will safely shut down if the blower is restricted

Specifications

  • Input BTU/Kw – 136,000 / 40 | 109,200 / 32 | 54,600 / 16
  • Electrical – 480 Volts, 50 Amps, 3 phase
  • Fan Capacity – 1,800 CFM
  • Thermostat Settings – Low/Med/High
  • Temperature Rise – 100 degrees
  • Ductable up to 50 feet
  • Dimensions 46″ L x 20″ W x 25″ H
  • Weight 125 lbs.



Specification Sheet Operation/Service Manual

Categories: , SKU: PAGHWP4000 -101620
Brands:
